CHEMPRO X

HANDHELD CHEMICAL DETECTOR

XPAND YOUR SAFETY

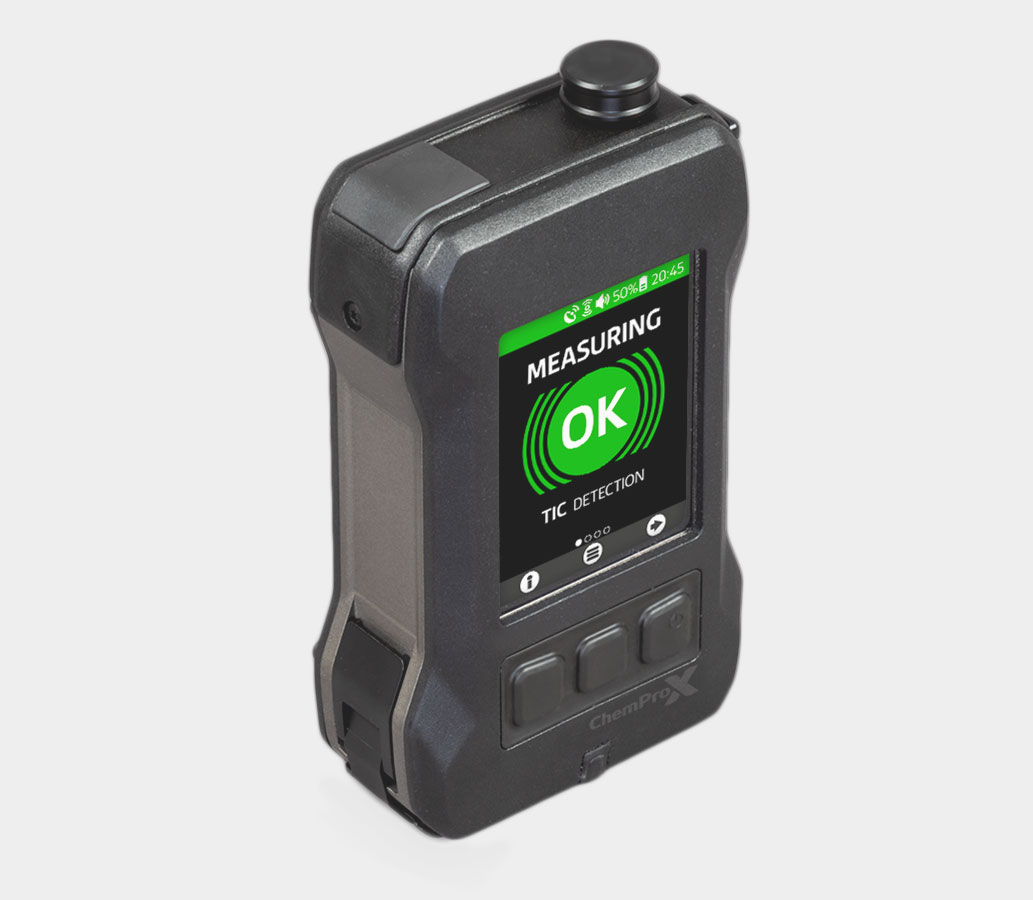

WHAT IS CHEMPRO X?

ChemProX belongs to a new generation of chemical detectors, so, it allows for full situational awareness during field operations.

It features a built-in simulation training mode and an embedded chemical database with operational instructions.

As a result, ChemProX enables any team to detect and classify CWA’s and TIC’s.

KEY BENEFITS

  • Wide range of detectable CWAs & TICs
  • Wireless network connectivity
  • Built-in GPS and group location
  • Simulation training mode
  • Chemical database and instructions
  • Optimized usability
  • Lowest maintenance costs in its class
  • UAV & UGV use without integration
  • Optional full CBRN detection capability

Specifications

Size

Approx. 160 x 100 x 50 mm (6.3”L x 3.9”W x 2”D)

Weight

Approx. 770 g (27 oz.)
(w/Li-Ion battery)

Detection Technology

Orthogonal detection using:
Open-loop (aspirated) IMS cell
Multiple semiconductor sensors

Detection Modes

CWA/TICs

Training

Built-in training mode

Connectivity

WLAN, WPAN, Radio Data
USB memory stick
Ethernet (optional accessory)
Up to 10 device per group with radio data

MIL Standard Compliance

MIL-STD-810G,
MIL-STD-461G,
MIL-STD-1275D
(full list of conducted tests available on request)

Dust & water resistance

IP67, MIL-STD-810G

Application

ChemProX is a versatile chemical detector therefore, it can be used both as a handheld equipment, or as stand-off component, as part of a field deployable network. ChemProX chemical detection performance is proven to be effective many different applications. For example, in single use (when the device is used as a conventional chemical detector), group use, perimeter monitoring network use, unmanned ground and air vehicles use, among others.

First Responders

Military

Mounting on Drone

Border CBRN Monitoring

Armoured CBRN Reconnaisance

Light CBRN Reconnaisance
