eBT-MES

TDOA + AOA Drone Detection, Identification and Tracking

Fixed or mounted on a vehicle to operate, detect the frequency of the red drone, identify the red drone, track the location, and report it to the friendly GCS

WHAT IS eBT-MES?

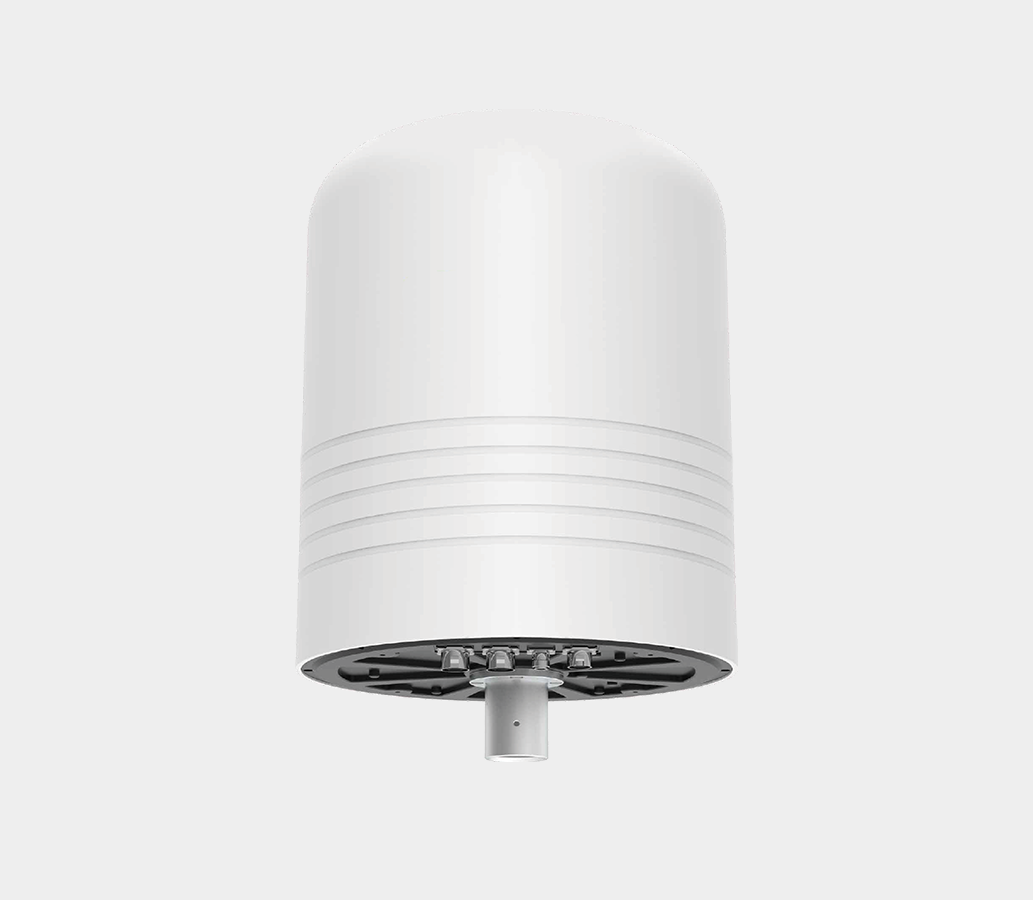

eBT-MES is a comprehensive drone detection solution offering intrusion alerts, identification, direction finding, and network-based localization. A single eBT-MES unit can detect and determine drone directions.

For enhanced accuracy, multiple eBT-MES units can be networked to employ TDOA (Time Difference of Arrival) algorithms for precise drone localization. eBT-MES uses a passive detection method, making it ideal for urban areas where minimizing radio interference is crucial.

Specifications

Frequency

100 MHz～6 GHz

Azimuth error

～ 10°

Detection Range

2~5 km
(Depending on drone model and environment)

Direction-finding range

2~4 km
(Depending on drone model and environment)

Dimension (Φ*H)

(420*530)±10 mm

Weight

～15 kg

IP Rating

IP65

Operation temperature

-30℃ ~ +65℃
