NC MONITORING SYSTEM

DETECTION SYSTEM COMPATIBLE CHEMICAL DETECTOR

ONE DETECTOR TO BIND THEM ALL

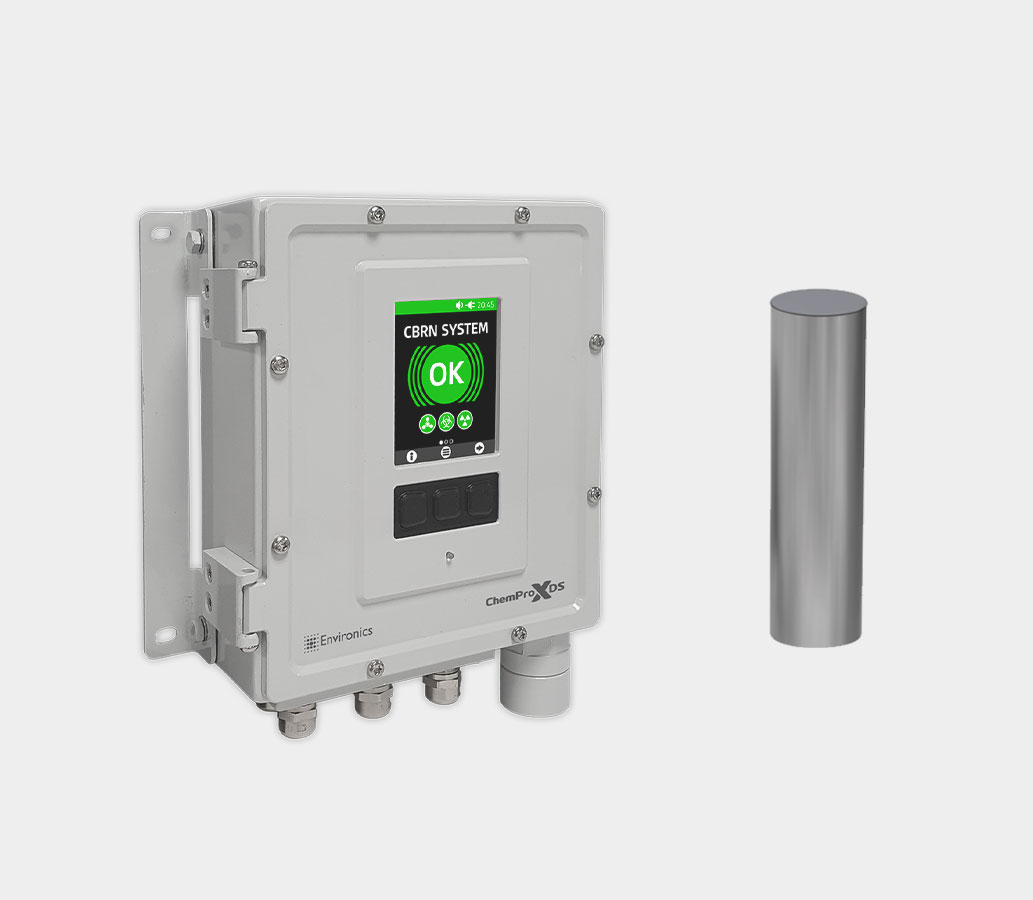

WHAT IS NC MONITORING SYSTEM?

One detector to bind them all. NC MONITORING SYSTEM is a chemical detector for fixed installations, which allows for both independent usage and system integration, featuring a local display with full CBRN system status.

Designed and developed for being a resourceful instrument, NC MONITORING SYSTEM permanently monitors, detects and classifies CWA’s and TIC’s, while it can serve as a network melting pot for other system components communication.

NC MONITORING SYSTEM combines chemical detector performance and CBRN System Monitoring capabilities. All connected CBRN System network devices’ statuses can be checked in ChemProX-DS user interface. Featuring industry-leading sensitivity and false alarm rejection, NC MONITORING SYSTEM is the most user friendly and low-maintenance package of its class.

KEY FEATURES

  • 24/7 chemical detection (CWA/TICs)
  • Gamma-ray and Neutron detection
  • Versatile communication and connectivity
  • Local display with full system status
  • Built-in maintenance & instruction tools for operator guidance
  • Robust design for indoor & outdoor applications
  • Integrate to 3rd party systems (Modbus interface)
  • Automatic relay control
  • Compatible with previous Environics systems
  • Online software updates available

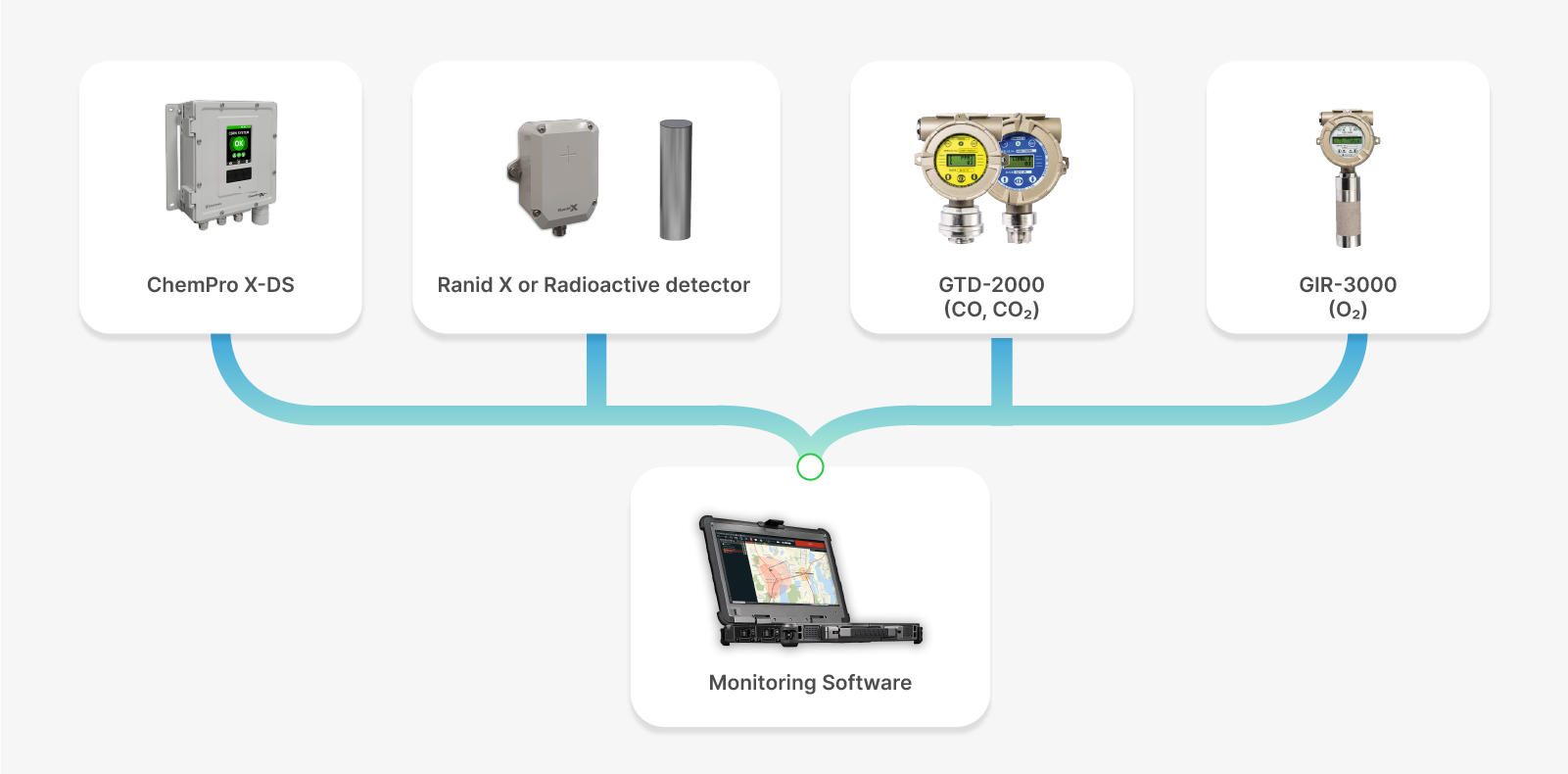

System
Configuration

Specifications
(ChemPro-X DS)

Size

Approx. 240 x 230 x 78 mm
(9.4”L x 9”W x 3”D)

Weight

Approx. 2.5 kg (88.9 oz)

Detection Technology

Orthogonal detection using:
•Open-loop (aspirated) IMS cell
•Multiple semiconductor sensors
•Under exemption limit Ni-63 (90MBq) radiation source

Detection Modes

CWA, TIC

Power

9-33 VDC (MIL-STD-1275)

Interface Protocol

Modbus TCP/IP (Ethernet)
Modbus RTU (RS-485/RS-422)

Specifications
(Radioactive detector)

Sensor (Gamma-Ray)

Type

NaI(Tl) Scintillator(Low Range) Temperature Compensated 5 level Energy Compensated Semiconductor(High Range)

Range

0.001 uSv/h ~ 4 Sv/h
error <15%

Sensitivity

> 30000 cpm/uSv/h

Energy Range

50 keV ~ 3000 keV

Response Time

< 2s

Sensor (Neutron)

Type

6LiF + ZnS:Ag Scintillator

Range

0~ 1,000,000 CPM

Efficiency

Thermal N : > 55%
Fast N : >1%

Range

1 uSv/h ~ 10 Sv/h

Energy

0.025 eV ~ 10 Mev

Other

Power

DC 9~ 18V Power <3W

Communication

RS485, RS232, 9600 bps, 8bit,1stop, No

Size

Body : dia 51mm X h 187 mm ~ 1200 g
Stand : dia 150 mm x h 133mm ~150 g

Material

Body : SUS304 (2mm thickness)
Stand : ABS(black) - 3d printed

Miscellaneous

Start Time : < 30 sec
Protection : IP67
Operation Temp : -30 ~ 50 ‘C
Shelf Temp : -40 ~70 ‘C

Application

NC Monitoring System is designed in a rugged housing to endure harsh and demanding environmental conditions, making it suitable for mobile and stationary detection systems. This includes platforms such as vessels, military vehicles, and critical infrastructures.

Naval & Maritime CBRN Monitoring

Armoured CBRN Reconnaissance

Armoured CBRN Monitoring

Light CBRN Reconnaissance

Building CBRN Monitoring

Shelter CBRN Monitoring
